12 Inch J&D Mfg. HAF Basket Fan – VDB12G

Description

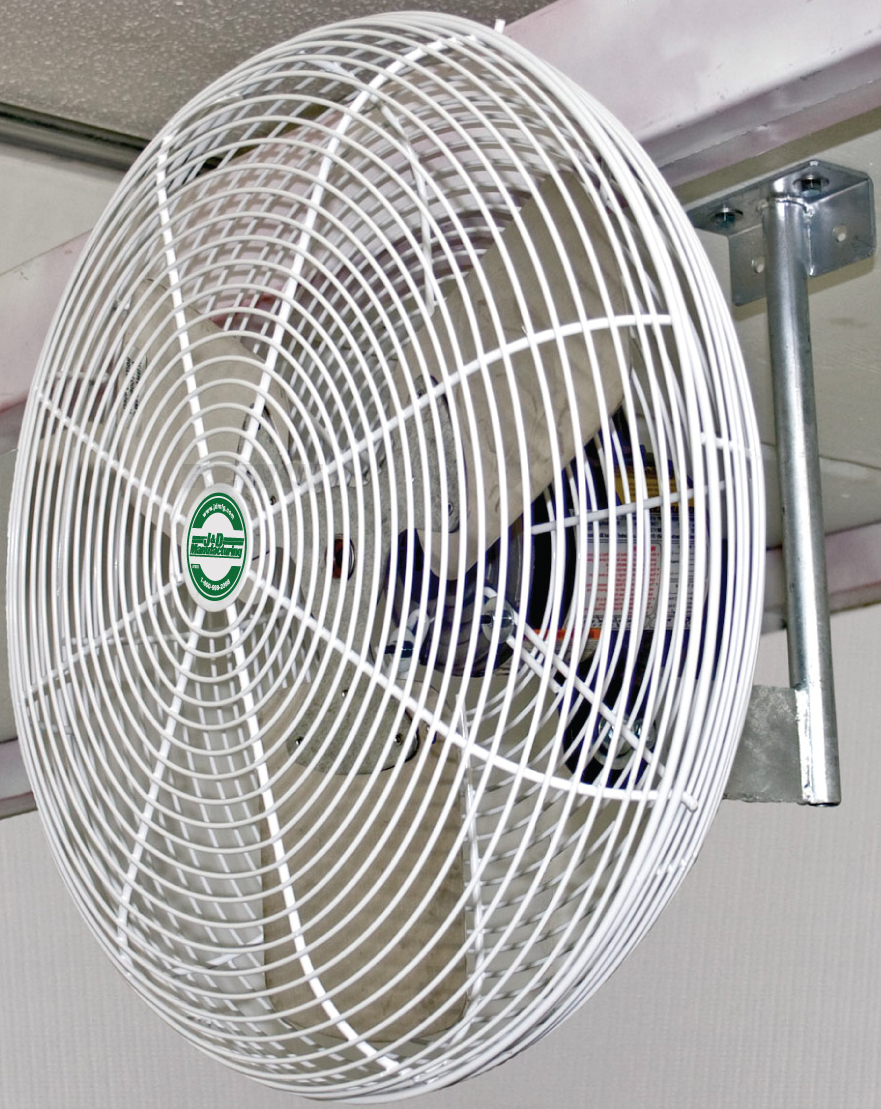

12 Inch EZ-Breeze Variable Speed HAF Basket Fan

This horizontal air flow basket fan will help you create uniform temperatures throughout your building. This HAF fan has a 1/10 horsepower motor. The fan ships completely assembled and includes a mounting bracket with the nuts and bolts needed to mount it. The aluminum propeller blades were designed to reduce ambient noise levels while still giving you maximum circulation.

This basket fan meets OSHA 1910.212(a)(5) requirements that states when you are mounting a fan less than 7 feet above the floor or working level, you need to have the fan blade guard with an opening of no larger than 1/2 inch.

Features:

Efficient variable speed motor
Corrosion resistant white powder coated fan guards
10 foot cord with 3-prong plug pre-wired for 115 volts
Direct drive high efficiency motor
UL/CUL recognized
Two year warranty
Download the User Manual

Specifications:

HP	Volts~	Amps	Hz	Spd^	FPM*	Thrust (lbf)	Thrust Eff. Ratio **	kW	RPM	Thrust CFM	Thrust CFM/ Watt
1/10	115	1.0	60	1/Var	565	0.84	7.2	.117	1,695	1030	8.8

Notes:

~ This unit comes pre-wired for 115 Volts (may be rewired by an electrician for 230 Volts)
^Variable speed fans require separate variable speed control to adjust fan speed
*FPM (Feet per Minute) - The velocity measured center line at a distance 5 times the prop diameter
** Thrust efficiency ratio is calculated by dividing the Thrust (lbf) by the kW

Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov

Question: Does this unit have a pull string?
Answer: No, this 12 Inch HAF Basket Fan needs to be wired to an on/off switch or variable speed controller.
Question: Can it be used outdoors?
Answer: The Basket Fans are not UL listed for outdoor use. We do have other Outdoor Rated Wall Mount Fans that you may be interested in.
