110 CFM Fresh Air Supply Fan for Crawl Space Ventilation

Name: 110 CFM Fresh Air Supply Fan for Crawl Space Ventilation
Brand: Tjernlund
SKU: TJE CS1
Price: 157.00 USD
Availability: InStock

Description

110 CFM Fresh Air Supply Fan for Crawl Space Ventilation

Made in the USA!

Use in conjunction with Tjernlund Crawl Space Ventilators to maximize the removal of moisture in

Crawl Spaces with:

Too few passive vent openings
Undersized passive vent openings
Passive vent openings located 40’ or more from Crawl Space Ventilators
“Dead Spots” that are not served by existing foundation vents (typically corners and annexes of L-shaped or other non-rectangular crawl spaces)

Specifications:

110 CFM
Motor: 115 Volts ~ 50/60 Hz, 0.30 amps maximum
Thermostat: On at 50°F, Off at 35°F
Dimensions: 18 x 9 x 2 inches
Mounting plate can be trimmed to 7 x 6 inches.

This 110 cfm fresh air supply fan for your crawl space has one fan and a 10"x18" faceplate sized for ventilation openings through block foundations. Includes freeze protection thermostat, hardware packet, and pre-wired 6' power cord. Ventilation/Relief holes in faceplate prevent crawl space pressurization and allow passive air flow in addition to the mechanical ventilation provided by the fan.

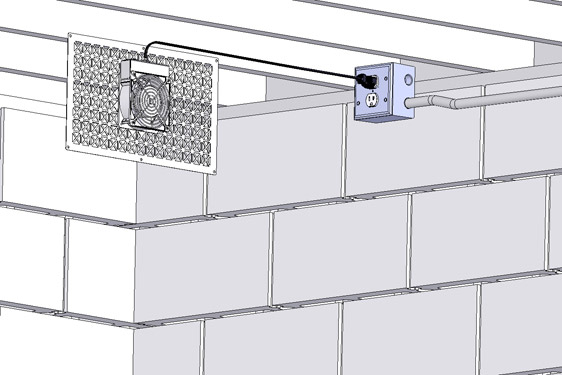

Installs on inside or outside of crawl space opening or against a joist near “Dead Spots.” Air flow (CFM) of Fresh Air Supply Fans can be matched with air flow of Crawl Space Fans. Heavy duty galvanized steel construction. It can be painted.

Download the Installation Instructions

Question: What is the opening needed to install?
Answer: The overall dimensions of the 110 CFM Fresh Air supply fan are 18 x 9 x 2 inches. However the mounting plate can be trimmed down to 7 x 6 inches.
Question: Is the air flow reversible? Change fan rotation?
Answer: No, this fan is just designed to bring fresh air into the crawl space.
