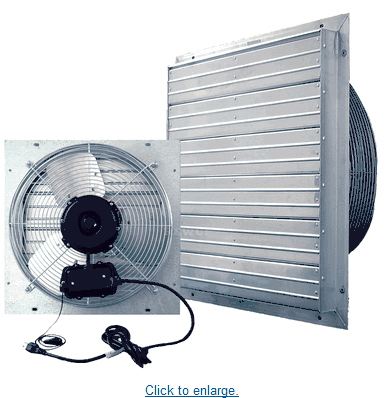

24 Inch Shutter Fan With Cord - 2 Speeds

Description

This indoor/outdoor shutter fan by J & D Manufacturing provide excellent ventilation with its 2 speeds and can move up to 5850 CFM.

This shutter fan comes fully assembled and ready to install. It is easy to install because it comes pre-wired with a 9 foot, 115 volt cord that has a 3 prong plug. No electrician to hire to install complicated wiring, simply plug it in. This shutter fan should be 7 feet above ground when the fan is mounted.

The tie bar on this shutter fan prevents the shutter flapping and opening on windy days. The direct drive motor is totally enclosed, and the ball bearings on this shutter fan are completely sealed. This shutter fan features a balanced 3 bladed aluminum prop with a zinc plated steel hub. This is a high quality shutter fan which is backed by a 2 year warranty. A weather hood may be purchased to protect your fan from the weather and wind.

Features:

Fully assembled
3 bladed aluminum prop
2 speeds
9 foot cord
Outdoor rated UL507 certified motor
2 year warranty
Download the Shutter Fan Installation Instructions

Specifications:

	HP	Wired Volt	Amps	HZ	CFM Hi/Low @.0" SP	CFM @ .05" SP	CFM/Watt Hi/Low @.0" SP	RPM Hi/Low	Rough Opening
VPES24	1/8	115	1.8	60	5850/3475	5560/3185	20/16	1200/900	24 1/2" x 24 1/2"

Warning. This product can expose you to chemicals including lead or chromium which are known to the State of California to cause cancer and or birth defects or other reproductive harm. For more information to go www.P65Warnings.ca.gov

Question: Can this exhaust fan be installed in the ceiling?
Answer: No.
Question: How much does this fan weigh?
Answer: Shipping weight is 37 pounds.
Question: Is this fan explosion proof?
Answer: No.
